Keyed air shaft: Representative models include (YR-100A/YR-100B)

This is the most widely used reel, with an application diameter of φ38-φ300. For coils of different materials, as well as different weight, width, thickness, winding speed and tension parameters of the coils, the corresponding shaft material thickness, key specifications and convex fixed plate materials will also be different. The reel width range of this product is ≥80mm, and the core wall thickness reaches a certain thickness. This product has a high cost performance and is widely used. 1. Application: Used in products with general requirements for the end surface accuracy of the interviewed rolls. 2. Unit load-bearing capacity: YR-100DU (aluminum) 3-inch maximum load-bearing 500KG 6-inch maximum load-bearing 1200KG YR-100SU (steel) 3-inch maximum load-bearing 1500KG 6-inch maximum load-bearing 5000KG

A best seller airshaft on the market because of the cheapest price .There are some restrictions on specification.but used most because of its low price.Size and material of lugs,pipes depend on its application circumstances  like web width ,weight,line speed and etc.

Features :For unwinding or rewingding work.

Minimum slit width:wider than 80mm

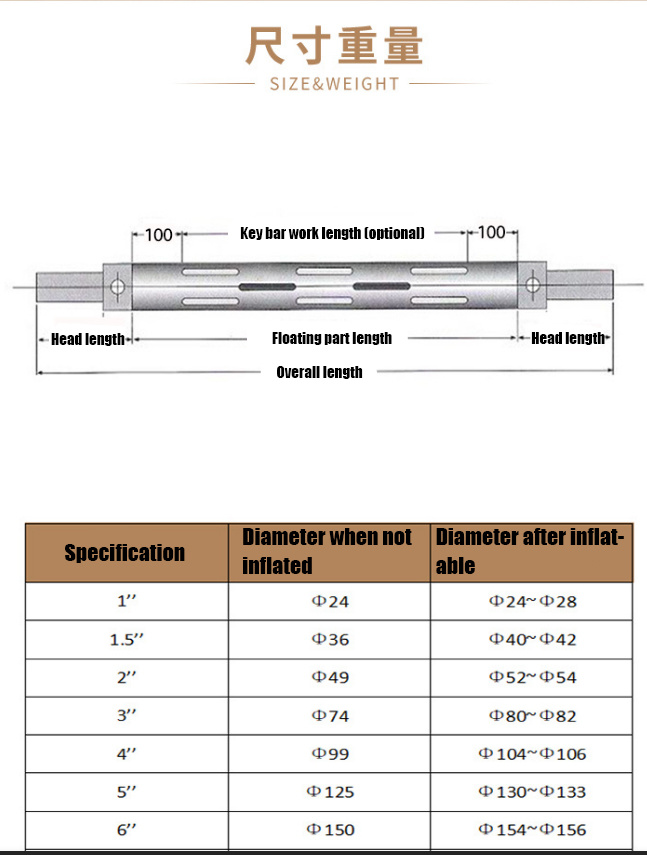

OD: φ38-φ300

Maximum load in case of duralumin pipe:500KG(φ76.2);1200kg(φ151mm)

Maximum load in case of steel  pipe:1200KG(φ76.2);5000kg(φ151mm)
